Trunnion Mounted Ball Valve

MTI trunnion mounted ball valves feature: a full line product offering with valves ranging in 2″-42″, ANSI classes 150LB – 2500LB, forged steel bolted or all welded body, close coupled trunnion block design for low operating torques, secondary seat sealant feature.MTI API-6D valves are offered with self relieving seats or optional double piston sealing. Special seat compounds are also available. Each valve meets, API-6D, API 6FA and Nace requirements. Options include stem extensions, actuators, pipe pups and specialized coatings.

Enquiry

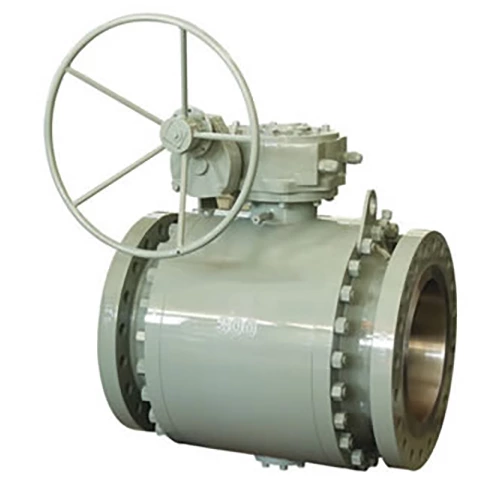

Trunnion Mounted Ball Valve
Trunnion Mounted Ball Valve

Design Features

Trunnion mounted ball valves met all the requirements of API 6D as well as the other design codes;Minimum wall thickness comply with ASME B16.34. Valves are usually supplied with lever,gear box,actuator or bare shaft on customer request

ISO5211 platform design is adopted for the convenience of installing the actuator

Double block and bleed function

Anti-blow-out stem design

The pressure balancing hole is provided on the steel ball

The body is provided with a device for cleaning the valve cavity

Automatic pressure relief function

Fireproof and antistatic design

Sealant injection system for emergency seal

Multiple driving modes facilitate the realization of automatic control

Reliable stem seal and low operating torque. Metal hard seal seat can be made according to requirements

Standard

Design & Manufacturing Standard：API 608, API 6D, ASME B16.34,
Face to face:ASME B16.10 ，API 6D，DIN 3202
Flange Connection Size：ASME B16.5, ASME B16.47, DIN 2543～2550, ASME B16.25
Butt Welding Size：ASME B16.25.
Test and inspection: API 6D, API 598
